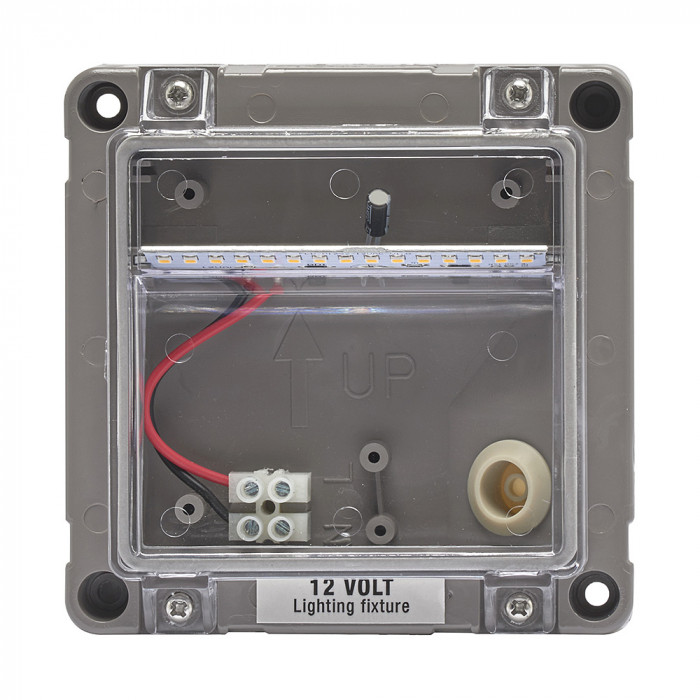

12Volt Square Deflector LED Surface Light
LKV12403
RRP: $58.16
In Stock
ADD TO MY LISTPRODUCT VARIATIONS
FEATURES
- Square Deflector 12V LED integral surface mount light.
- Light is directed down towards the floor.
- Interchangeable covers just click onto the main body (Covers sold separately).
- Ideal halogen replacements.
- Surface mounted, so no recess is required.
- Made with a polycarbonate body and lens.
- Can be used both indoors and outdoors.
- You will need to purchase the control gear separately
- Use power supplies: 12 Volt LED electronic drivers or 12 Volt magnetic transformer or 12 Volt battery
- DO NOT use electronic transformers
- Light Cut Off: ULOR = 0.8%
SPECIFICATIONS
Lamp included: Yes
Number of lamps: 1
IP Rating: IP65
Technology field: LED
Indoor / Outdoor: Indoor, Outdoor
Mounting type: Wall
Colour: Charcoal
DIMENSIONS
- 124mm Square x 22mm depth
TECHNICAL DATA
Total lumens: 55
Colour temp: 3,000K
Power supply: 12V
CRI: 80
Wattage: 1.5
