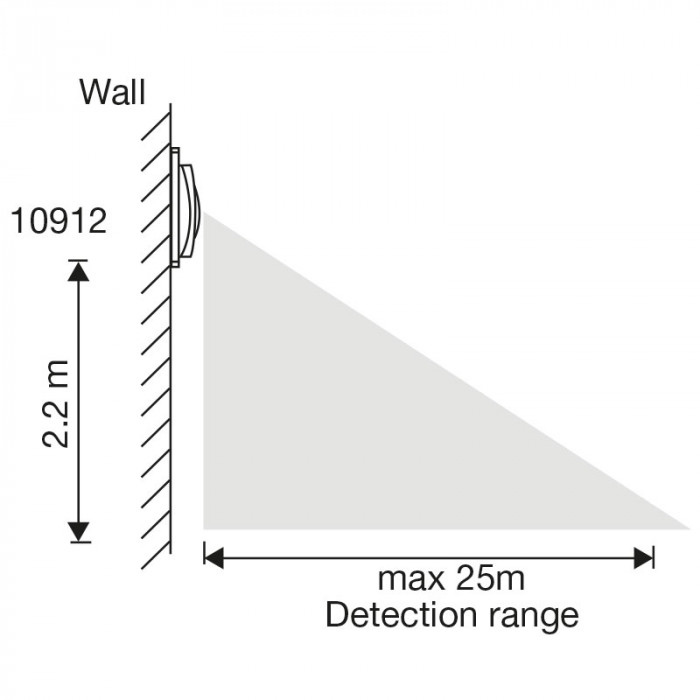

ND912 Line Drawing
ND912 Line Drawing

Wall 25 metre 180º HF sensor

ND912
RRP: $104.29

In Stock

ADD TO MY LIST

PRODUCT VARIATIONS

ADD TO MY LIST DOWNLOAD TECHNICAL SPECIFICATIONS PDF SDoC DOWNLOAD INSTRUCTION SHEETS
FEATURES

  • 25 metre 180º high frequency occupancy sensor
  • Surface Mount
  • Recommended mounting 2.2mH
  • Can detect through plaster board, glass and walls
  • Adjustable time delay, lux and distance settings
  • Digital HF sensor technology for excellent detection
  • Max 1000 watt Incandescent
  • Max 400 watt Fluorescent
  • Max 300 watt LED

SPECIFICATIONS

IP Rating: IP20

Indoor / Outdoor: Indoor

Mounting type: Wall

Showroom Locations: 68O

DIMENSIONS

80mm square x 43mm deep

TECHNICAL DATA

Power supply: 220-240V, Double Insulated
